Die making is a complex process that involves designing and manufacturing metal dies used in various industries such as automotive, aerospace, and consumer goods. The die making process is crucial in the production of high-quality products, as it enables the mass production of identical parts with precise dimensions and specifications. In this article, we will provide a comprehensive guide to the die making process, covering the key stages involved in creating a die from scratch.
Designing the Die
The die making process begins with designing the die. This stage involves creating a blueprint of the die using computer-aided design (CAD) software. The design must take into account the specific requirements of the product, including its shape, size, material, and functionality. The designer must also consider the type of die being created, such as a stamping die, forging die, or casting die. The design stage is critical, as any errors or inaccuracies can lead to costly revisions or even render the die unusable.
Material Selection and Procurement
Once the design is finalized, the next step is to select the appropriate materials for the die. The choice of material depends on the product’s requirements, such as durability, corrosion resistance, and thermal conductivity. Common materials used in die making process include steel, aluminum, and copper. The selected materials are then procured from suppliers, and the die maker must ensure that the materials meet the required specifications and standards.
Machining and Tooling
The machining and tooling stage is where the raw materials are transformed into the desired shape and form. The die maker uses various machining techniques, such as milling, turning, and grinding, to create the die’s components. The tooling process involves creating the necessary tools and fixtures to support the die during production. This stage requires high precision and accuracy, as any errors can affect the die’s performance and longevity.
Heat Treatment and Finishing
After machining and tooling, the die undergoes heat treatment to enhance its mechanical properties. Heat treatment involves heating the die to a specific temperature and then cooling it to achieve the desired level of hardness and toughness. The die is then subjected to various finishing processes, such as polishing and coating, to improve its surface quality and reduce wear and tear.
Assembly and Testing

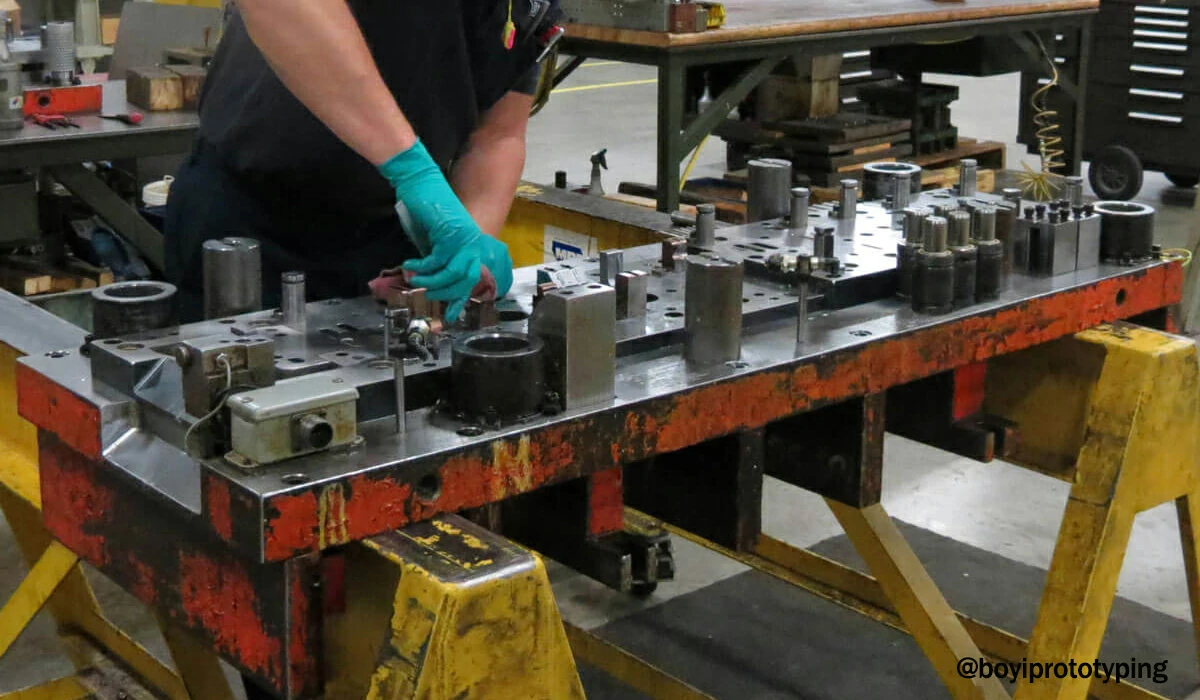

The final stage of the die making process is assembly and testing. The die’s components are assembled, and the die is tested to ensure that it meets the required specifications and standards. The testing process involves checking the die’s accuracy, precision, and performance under various conditions. Any defects or issues are addressed, and the die is refined until it meets the desired quality standards.
Die Maintenance and Repair
Once the die is in production, it requires regular maintenance and repair to extend its lifespan. The die maker must clean, lubricate, and inspect the die regularly to prevent wear and tear. Any damage or wear is addressed promptly to prevent downtime and maintain production efficiency.
Conclusion
In conclusion, the die making process is a complex and precise process that requires careful planning, design, and execution. From designing the die to testing and maintenance, each stage of the process is critical in ensuring the quality and accuracy of the final product. By understanding the die making process, manufacturers can appreciate the importance of investing in high-quality dies that meet their specific needs and requirements. Whether it’s for automotive, aerospace, or consumer goods, the die making process plays a vital role in the production of high-quality products that meet the demands of modern industries.
